June 2023
T4 - pelvis fusion featuring UNiDTM ASI patient-specific rods, O-armTM Surgical Imaging System, StealthStationTM navigation, and PowerEaseTM System
Patient description: 74-year-old female with a prior spinal fusion from T10-S1 performed in 2009. Patient continued to have chronic back pain and in 2019, she heard a "crack" and had worsening back pain and right buttock pain. Patient had increasing difficulty standing upright and could not walk long distances.
Patient diagnosis: Iatrogenic flatback deformity, pseudarthrosis with broken rods, proximal junctional failure
Presented by:
Venu Nemani, M.D.
Virginia Mason Franciscan Health (Seattle, WA)
Paid Consultant for Medtronic
Saggital pre-operative imaging
AP pre-operative imaging
CT pre-operative imaging
MRI pre-operative imaging
Case description: Patient underwent a revision posterior spinal fusion from T4 - pelvis with a pedicle subtraction osteotomy (PSO) at L4 and a tether from T2-T4. Screws were placed from T5 - T9 using 3D printed drill guides and PowerEase. T10-S1 was revised and instrumentation was upsized. Downgoing transverse process hooks were placed at T4. Stealth navigation was used to place bilateral S2AI screws and a third supplemental iliac screw. A PSO was performed at L4 and the osteotomy was closed using short rods spanning from L3-L5. Then, patient-specific rods were placed to realign the spine from T4 - pelvis. An additional rod was placed engaged into the supplemental iliac screw to have a 5 rods crossed the three-column osteotomy site. Finally, a tether was weaved in a figure-of-eight fashion through the spinous processes of T2-T4.

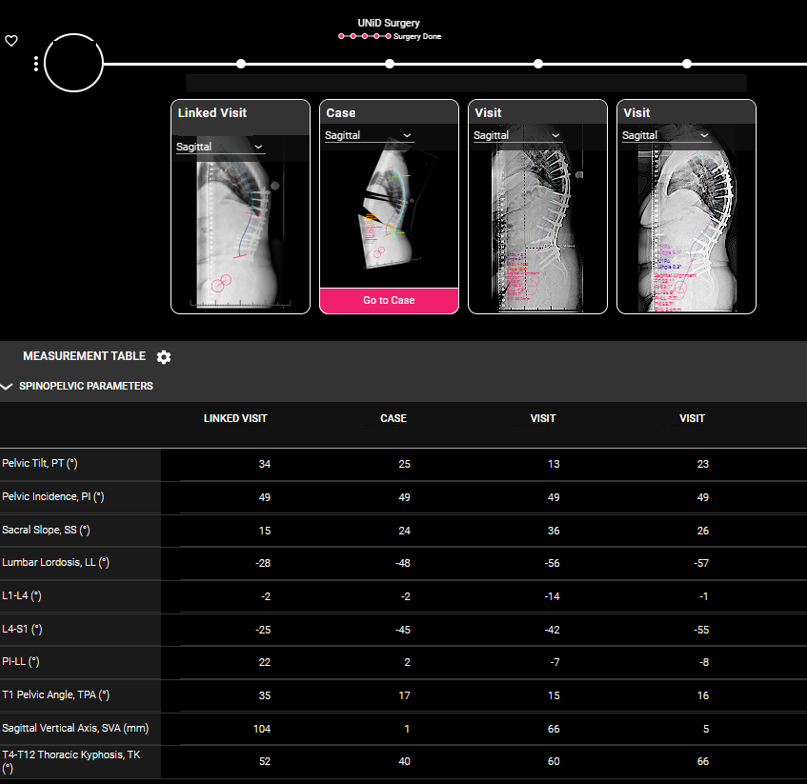

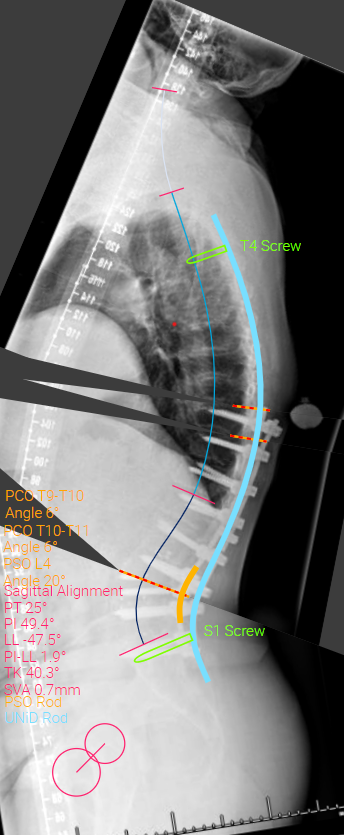

UNiDTM HUB Plan
UNiDTM HUB Plan
AP postoperative image
Saggital postoperative image
Outcome: Patient is 1-year postop with dramatic improvement in alignment, posture and reported improved pain compared to preop. ODI 38 preop, ODI 16 at 1-year postop.
Dr. Venu Nemani is a paid consultant for Medtronic.
